Canyon Endurace, Ultimate & Aeroad comparison guide

Mar 4, 2024 9 min

Canyon Endurace, Ultimate & Aeroad comparison guide

Which Canyon road bike should I buy?

This is one of the questions we are asked most often. We could answer it now with our co-founders' favorite Canyon bike (tip if you want to apply and make a good impression immediately: it's the Ultimate CF), but it's not that simple.

That's why Nic has prepared a YouTube video with all the information you need to decide on a Canyon road bike. You can find his YouTube video directly below this paragraph. If you haven't already, don't forget to give him a follow.

In this blog article, we also compare the Aeroad, Ultimate, and Endurace bikes to help you find your dream bike. As for the blog post, here we go: Which Canyon road bike suits you best?

👋

Do you know buycycle? We are the leading marketplace for buying and selling used bikes. Not just any bikes - only beautiful performance bikes. Come and take a ride!

Canyon Endurace, Ultimate & Aeroad comparison

📖

buycycle Vocabulary box: Throughout this article, you will repeatedly read abbreviations such as CF, SLX and CFR. These stand for the different material variants and carbon fibers that Canyon offers. They differ in terms of their construction, their modules and their weight... there's a whole science behind it, which is helpful for you to know: The models have different lightness, stiffness and quality and also cost more or less accordingly. The Ultimate and the Aeroad are available in CF SL, SLX and CFR, while the Endurace is only available in the basic versions made of regular carbon (CF SL and CF SLX) and aluminum (AL).

1. Geometry

The Endurace has the most relaxed geometry, the most extended stack, and the shortest reach. It offers an upright seating position for more comfort on long distances, thus protecting your lower back. Yet it doesn't lack speed, as it's still sportier than a typical Endurance bike. The wheelbase and chainstays are also significantly longer, making it more stable at high speeds and off-road, but making the handling less responsive and thus slowing it down in corners.

Canyon Endurace, Ultimate & Aeroad comparison

The Ultimate and the Aeroad are very similar in terms of their frame geometry. The stack and reach are identical and both offer a sportier and more aerodynamic riding position than the Endurace.

"Both are also more agile and precise in handling, the Aeroad even more so than the Ultimate, as it has slightly shorter chainstays and a shorter wheelbase. However, this also makes the Aeroad less stable than the Ultimate." - Alice Huot @buycycle

💡

Are you thinking of buying a bike soon? Come and see our beautiful used bikes in our shop.

2. Tire clearance

The latest Endurace AL and CF versions have a tire clearance of up to 35 mm and mounts for bags on the top tube, further increasing comfort and versatility. The latest Ultimate is in no way inferior in terms of comfort, however, after all, the mounting of up to 32 mm wide tire possible.

Both wheels are, therefore, true heroes even on light gravel, whereby the Endurace master better the Edge.

The Aeroad allows a tire width of 30 mm, which is still quite versatile for a pure aerobike.

from left to right: Endurace, Ultimate and Aeroad forks

Speaking of aero, all the bikes are aerodynamically optimized in their own way, with all cable routing at least partially integrated (on the Ultimate and Aeroad, they're fully integrated). In terms of pure geometry, the Ultimate offers top-tier aerodynamics.

"Still, as you can see from the thicker tubes and the curved seat tube that protects the rear wheel, the Aeroad offers minimal attack surface to drag and performs best among the three." - Anja Benson @buycycle

3. Groupsets and components

Regarding the groupsets there's not much to discuss, as all three bikes in the same price range are similarly equipped in each case. It is worth noting, however, that the Endurace is the only model that is still offered in a version with rim brakes.

As for the other components, there are variations depending on the model, designed to support the main purpose of each bike. The Endurace has fairly standard road bike wheels, round handlebars and a carbon seatpost.

On the CF SL and SLX versions, it's even the shock-absorbing VCLS seatpost that's fitted, as well as a carbon Ergo cockpit and aero wheels with a maximum rim depth of 45 mm for even more comfort and speed.

The Ultimate comes with the new D-shaped seat post for improved aerodynamics, the wheels are even more aerodynamic with a maximum rim depth of 50 mm and it has the same aero handlebars as the Aeroad. The fully integrated aero cockpit is foldable and adjustable in width and height, allowing you to adjust the handlebars for certain races and make the bike even easier to transport.

To improve aerodynamics even further, all Aeroad bikes are equipped with 62 mm deep wheels, and the lightweight seat post with a deep profile cuts through the air like butter.

4. Weight

The weight of each model depends heavily on the respective version and installed components. Overall, the Ultimate is ahead in this category, as the lightest version (Ultimate CFR Di2- 10,499 €) weighs 6.32 kg in size M and is ideal for climbing.

Not far behind is the Endurace, whose most expensive version weighs 6.88 kg (Endurace CF SLX 9 Di2 - 7.799 €). The heaviest model is the Aeroad, which weighs 7.20 kg (Aeroad CFR Disc Di2 9,199 €), but this is to be expected as aero bikes generally use more material for increased aerodynamics. For an aero bike, however, the Canyon Aeroad is still very light...

💡

"I want to sell my bike!". Good, we’ve got you covered. Discover how easy, fast, and secure it is to sell your bike on buycycle.

5. Price

The last and most crucial point is the price tag of the bikes. Here we can talk about the different price ranges and tell you that the Endurace starts at €999 and is, therefore, the cheapest, but that doesn't help us: it makes the most sense if we compare three bikes in the same price range.

That way, you'll get a good idea of what you're getting for your money. So, let's compare the Ultimate CF SL 7 Di2, the Endurace CF SL 8 Di2, and the Aeroad CF SL 8 Disc. All three cost €3,999.

In the switch groups category, the Endurace in our opinion, is the best. After all, the ingenious Shimano Ultegra Di2 12-speed shifting is installed. But the Endurace has only an aluminum wheelset and also weighs the most.

"The Aeroad offers "only" the mechanical Ultegra group but also a high-quality, lightweight aero carbon wheelset and weighs the least." - Alice Huot @buycycle

The Ultimate, on the other hand, offers the 105 Di2 12-speed groupset, an aluminum wheelset, but has the new, fully integrated, adjustable aero handlebar.

So, as is all too often, it comes down to what you really want from your bike: If an electronic groupset is a must, then the Endurace is the best option. If you're looking for aerodynamics, the Aeroad is your bike; if you want the best of both worlds, the Ultimate is perfect. But more on that now because after this Canyon road bike fact marathon, the question remains:

6. Which is the best for you?

If you are new to cycling or just looking for a versatile bike that offers great comfort for long distances and can also handle light gravel, then you should consider the Endurace bike.

If you're looking for a pure road bike optimized for flat terrain and wins the gold medal among the three in terms of aerodynamic efficiency, then the Aeroad is for you.

And if you crave a well-balanced bike that rides very fast, climbs quickly, and offers solid comfort, the Ultimate is precisely what you need!

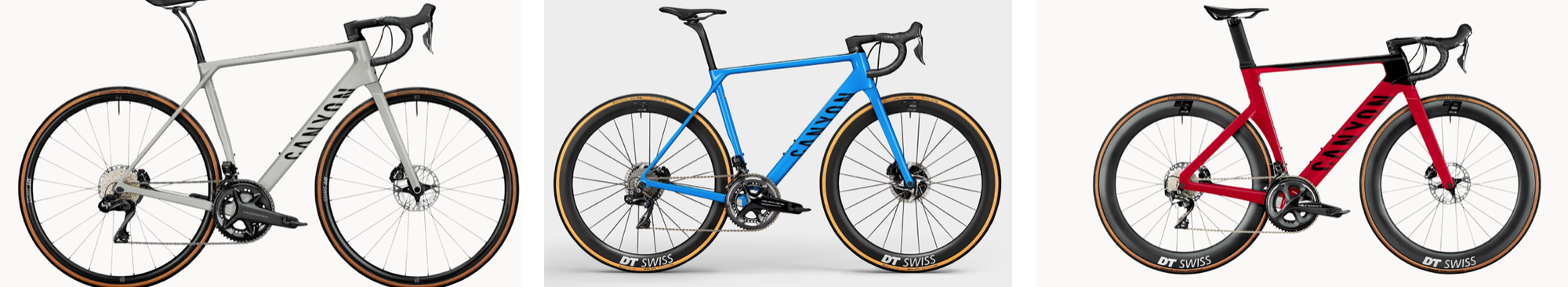

From left to right: Endurace, Ultimate, Aeroad

The best? The three Canyon road bike models are so popular that it won't be hard to find one used and save some serious money. Even easier is your Endurace, Ultimate, and Aeroad.

Of course, search on buycycle.com. Nowhere else can you find your new, used dream bike so fast, safe, and uncomplicated! Canyon road bikes or bikes in general, is our team is always there for you, but until then, we wish you Happy browsing and happy cycling!
