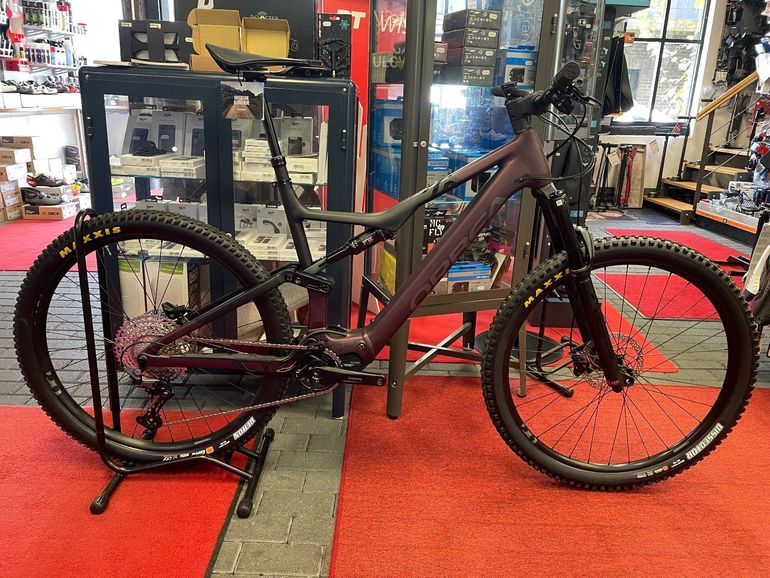

Telaio: Orbea Rise Hydro 140 mm di escursione 29" Boost 12x148

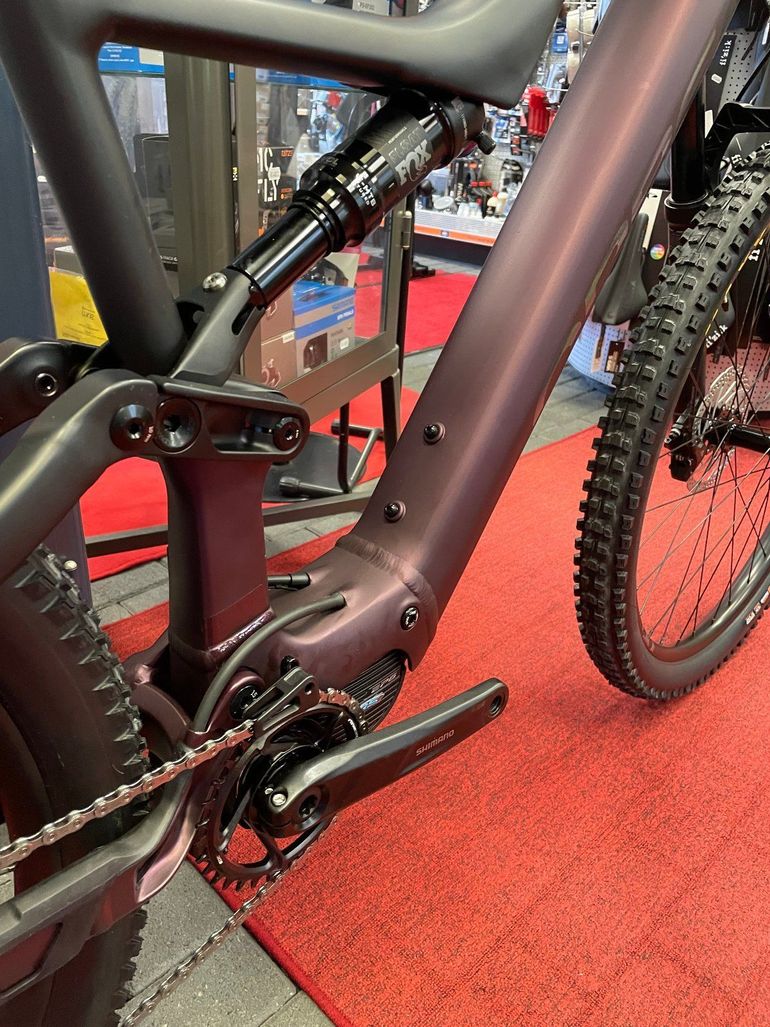

Ammortizzatore: Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
Forcella: Marzocchi Bomber Z2 140 QR15x110
Serie sterzo: Acros Alloy 1-1/8 - 1-1/2" integrato
Batteria Ebike: Orbea Internal 540Wh (252 Wh Range Extender opzionale)
Motore: Shimano EP600-RS
Caricabatterie: Orbea 2a generazione eBike Smart 42V/2-4A
Telecomando: EN600-L
Pedivella: e*thirteen e*spec Direct Mount 32T Boost
Braccio del pedale: Shimano Steps EM600
Leva: Shimano Deore M6100

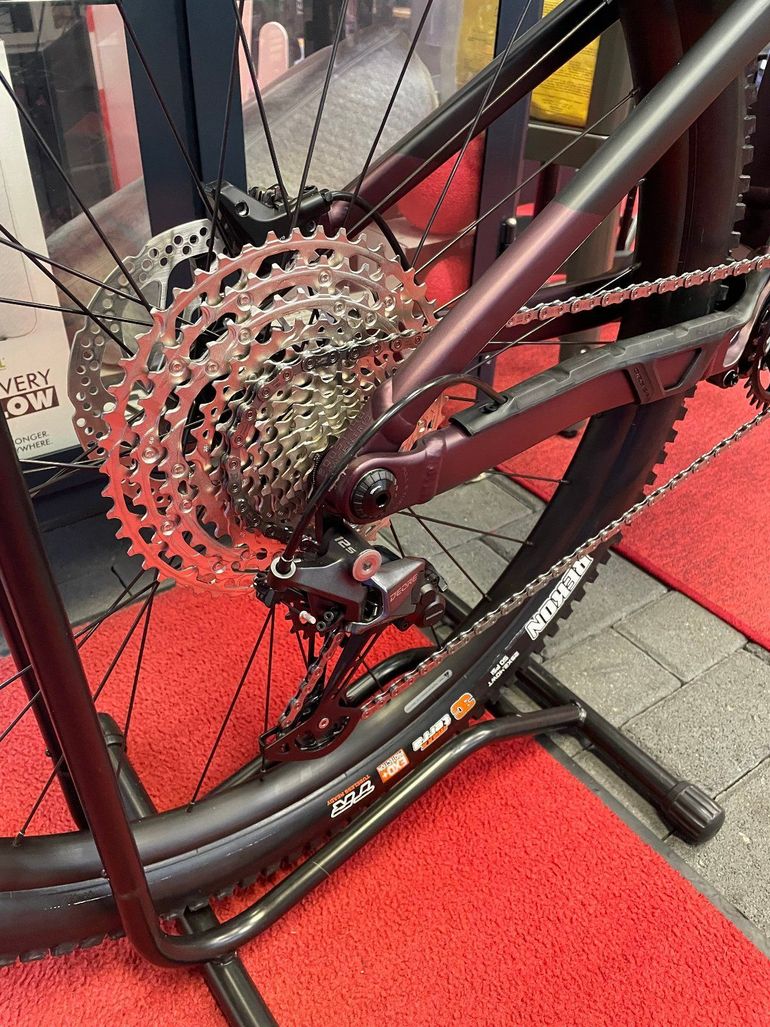

Cassetta: Shimano CS-M6100 10-51t 12 velocità
Deragliatore posteriore: Shimano Deore M6100 SGS Shadow Plus
Catena: Shimano M6100
Guida catena: Orbea Rise chainguide
Manubrio: OC Mountain Control MC30, Rise20, Larghezza 800
Attacco manubrio: OC Mountain Control MC20, 0º
Supporto per computer: OC Computer Mount CM-05, Garmin/Sigma
Freni: Disco idraulico Shimano MT410
Dischi freno: 180mm anteriore /180mm posteriore
Ruote: Lega, tubeless, 29", 29c, 32H
Pneumatici anteriori: Maxxis Dissector 2.40" 60 TPI 3C MaxxTerra Exo TLR
Pneumatico posteriore: Pneumatici Maxxis Rekon 2.40" 120 TPI 3C MaxxTerra Exo+ TLR
Reggisella: OC Mountain Control MC21, 31,6 mm, Dropper 170 mm
Reggisella remoto: Shimano SL-MT500
Sella: Selle Italia Model X FecAlloy Rail 145x248mm
Manopole: OC Lock On
