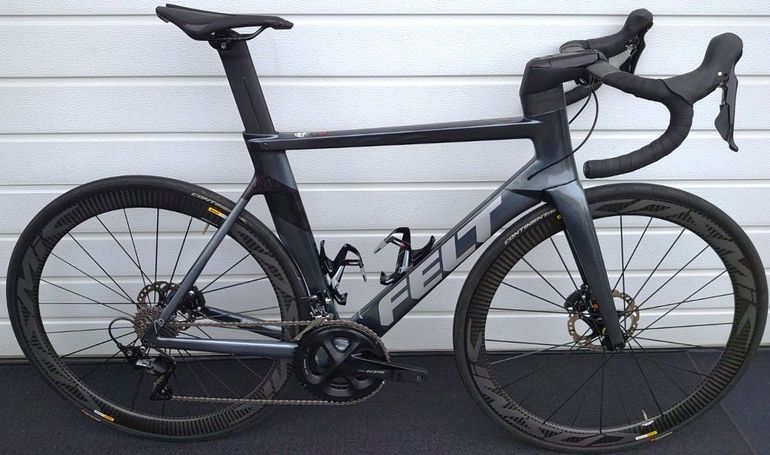

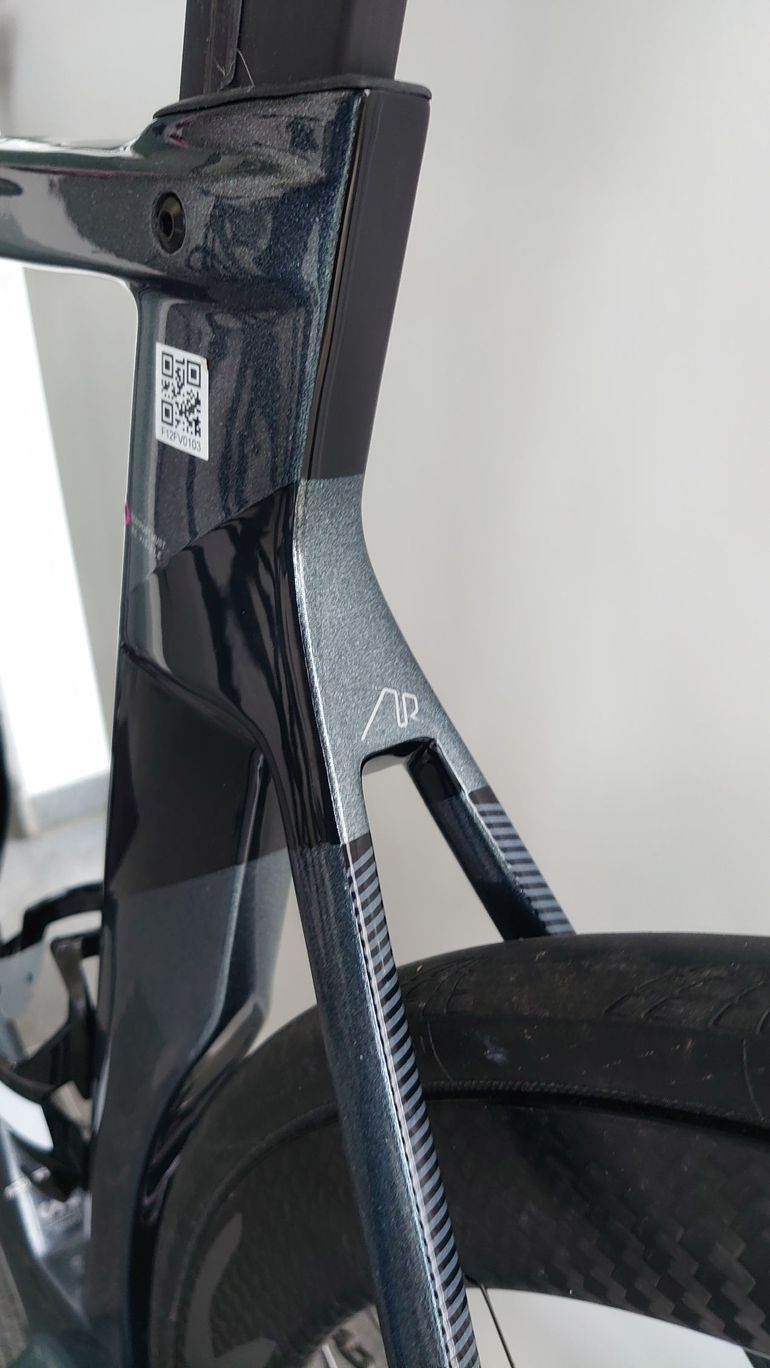

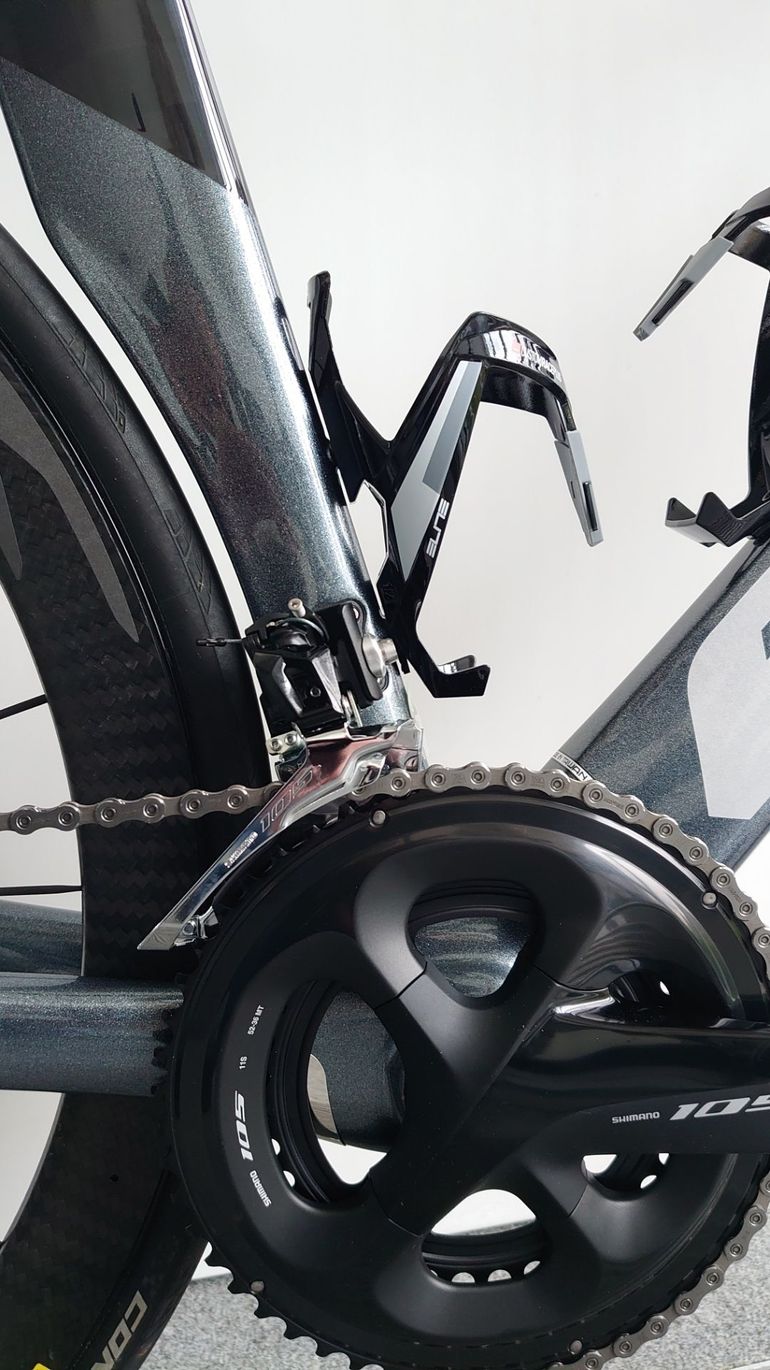

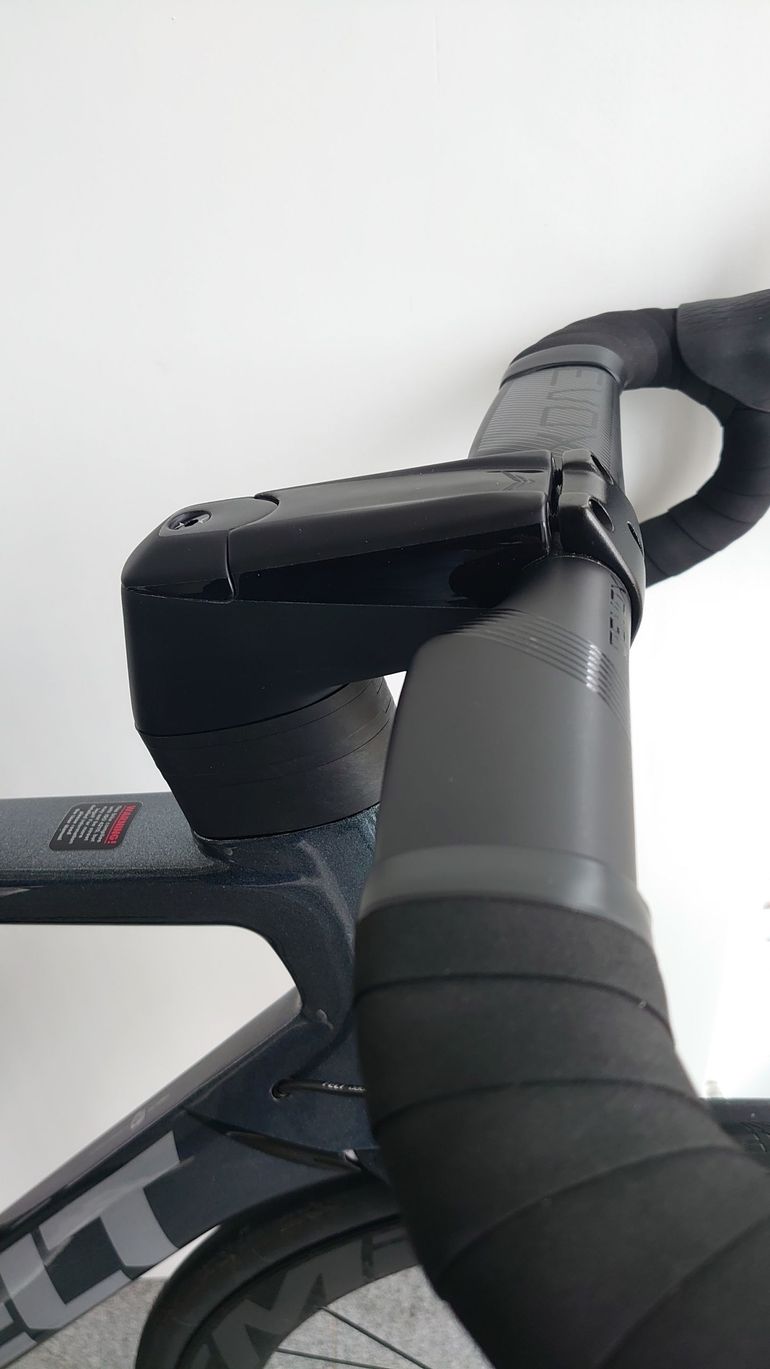

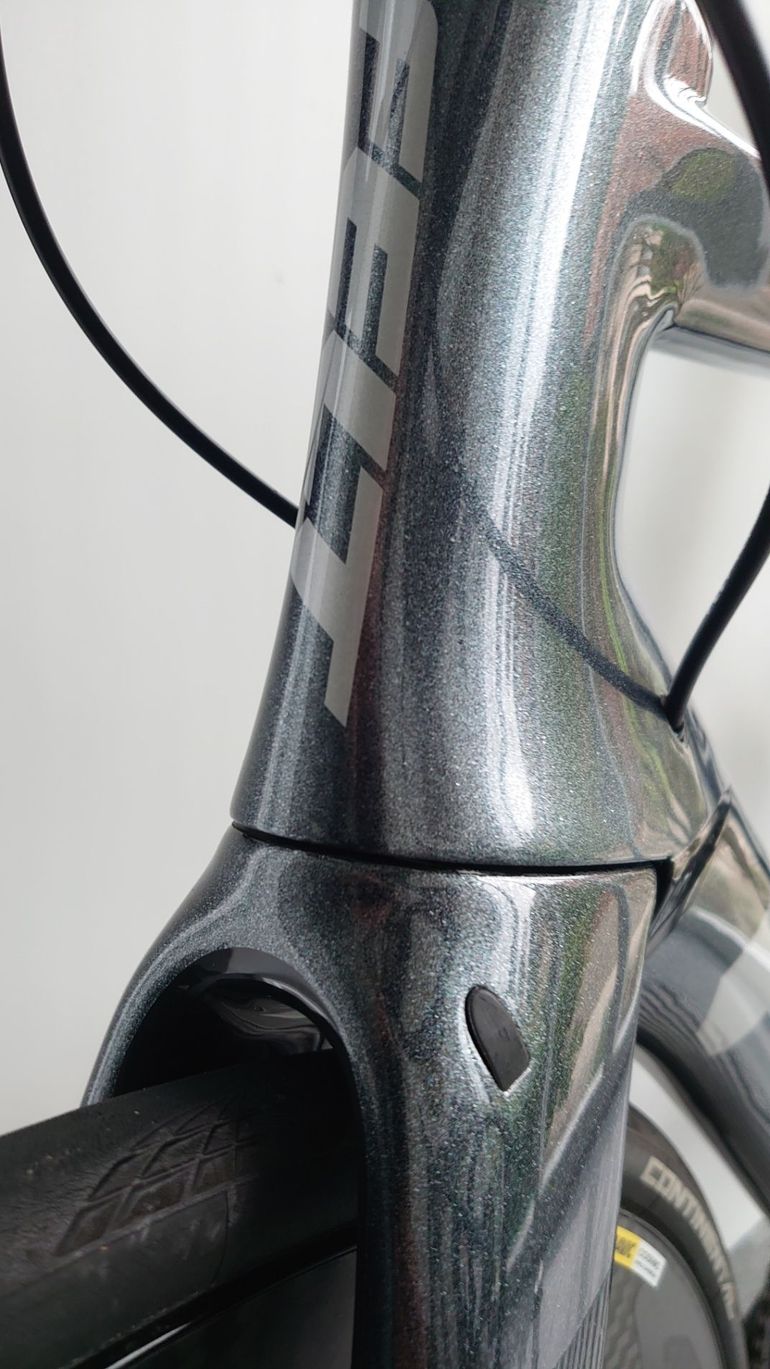

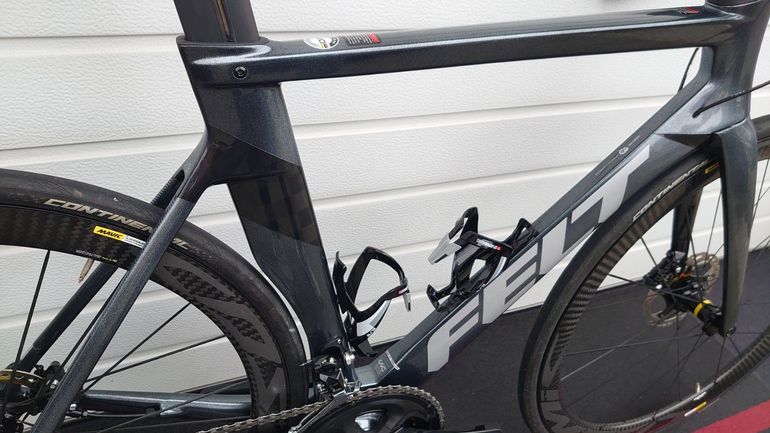

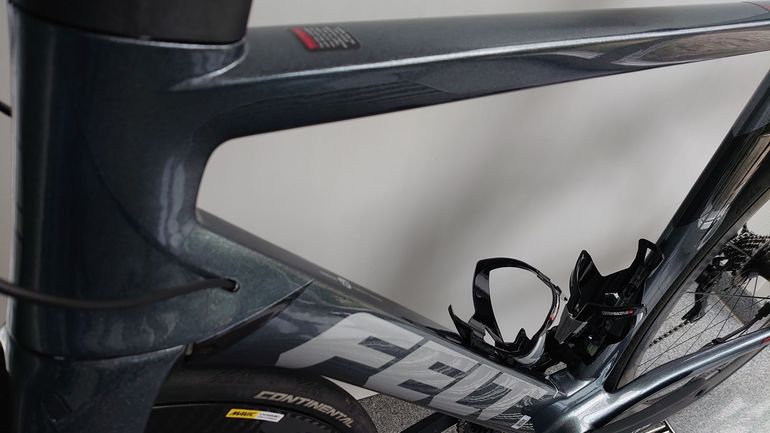

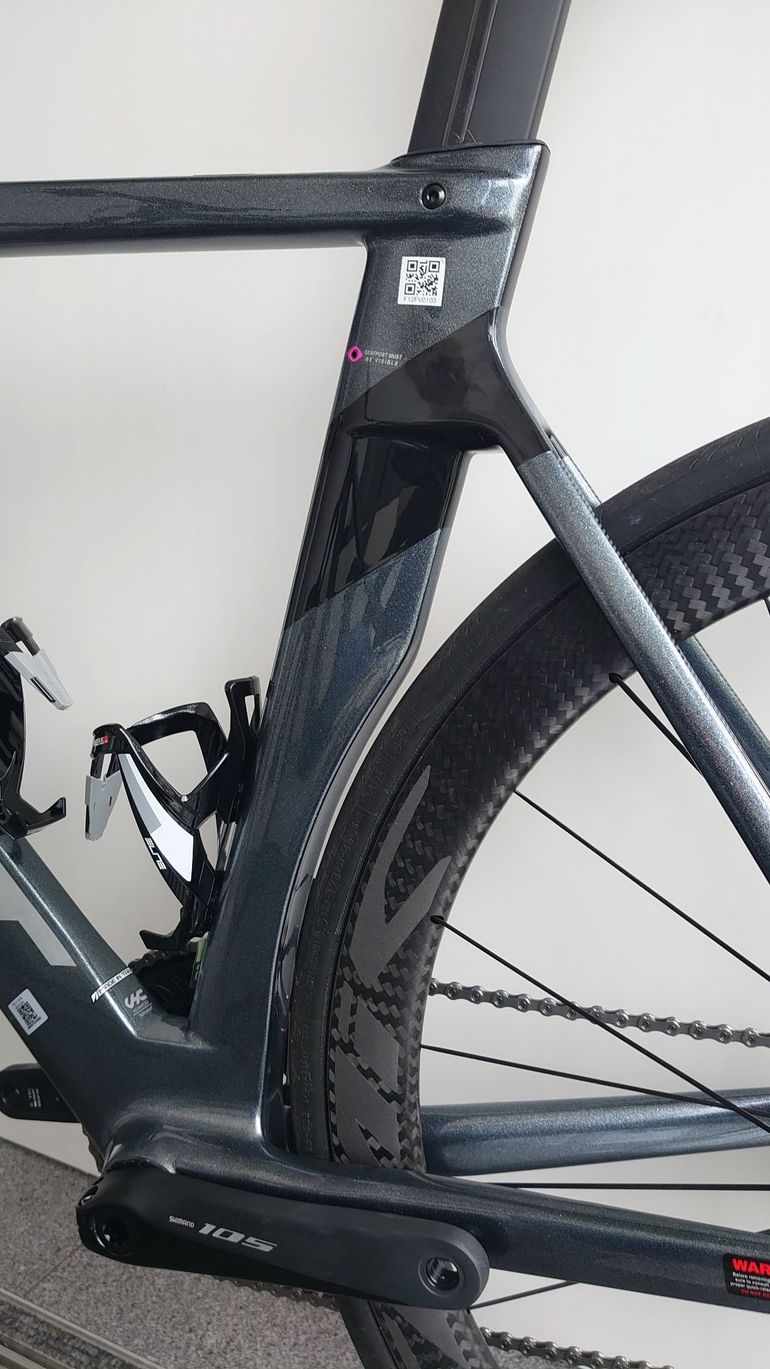

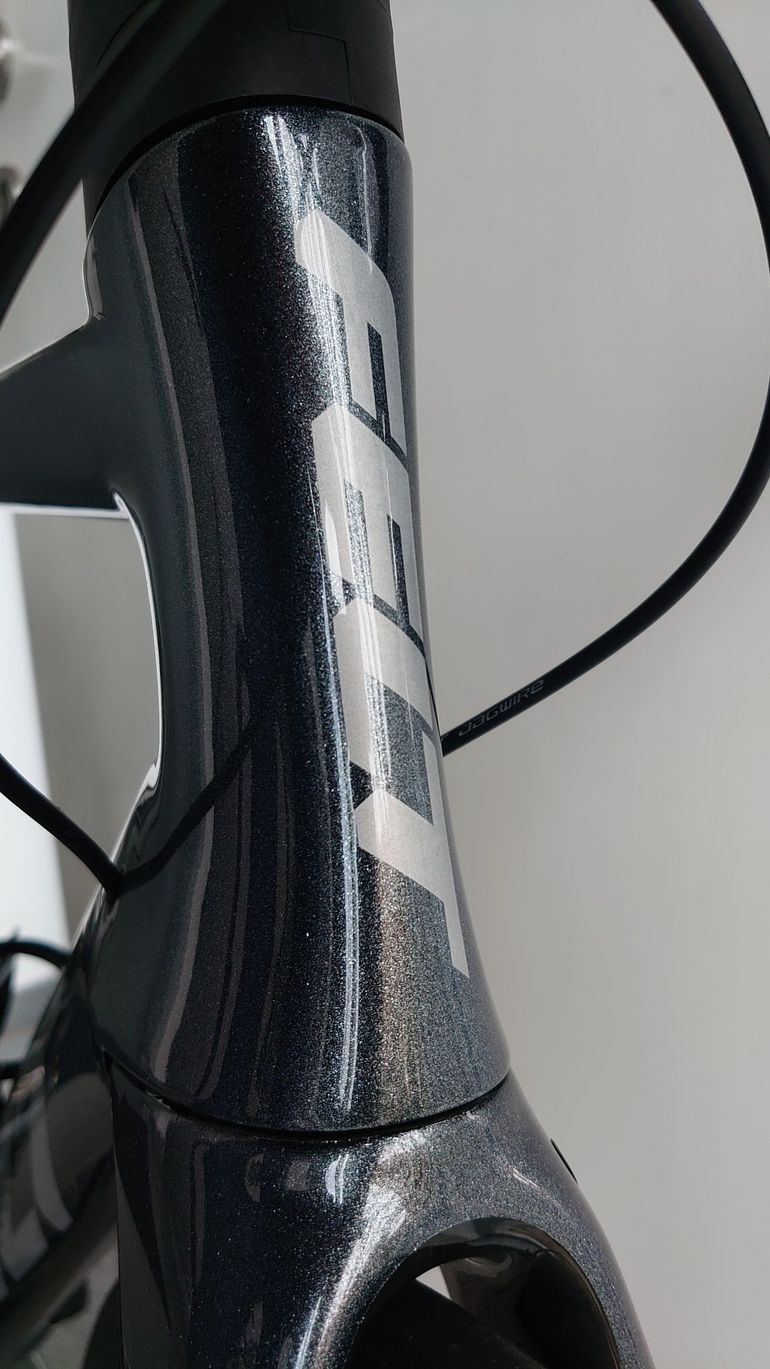

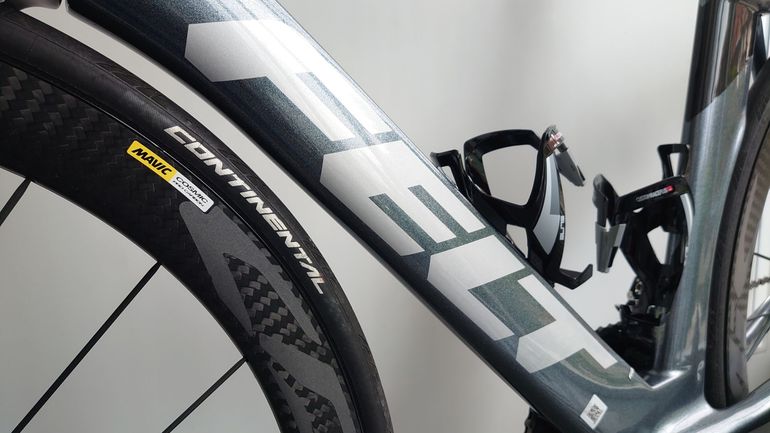

Felt AR Advanced Carbon Aero Roadbike size 56 color starry-night new and unused The frame has been designed according to a new airstream theory. This assumes that most of the time the airstream only hits the frame at an angle of +/-5°. Previously, flatter angles of +/- 10° were assumed in frame construction. Accordingly, the tube cross-sections look different. While the tubes of the AR predecessor were still completely rounded and resembled an ellipse in cross-section, the new tubes have been rounded at the front and blunted at the rear. According to measurements, the new, more angular shape of the tubes makes the frame even stiffer at the bottom bracket and head tube, while the chainstays and seat tube have also been optimized for wider wheels. This means that up to 30 mm tires can be fitted. The thru axles are flush with the dropouts, resulting in a smooth transition. There is a specially designed chain catcher on the bottom bracket, which prevents the chain from jumping off the small chainring or getting wedged between the bottom bracket and crank. The stem and handlebars are made of carbon as standard. The brake and gear cables are integrated into the stem, thus reducing air turbulence at the front.

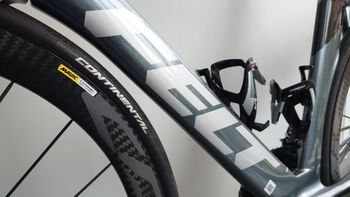

Detail specification: Frame Felt Aero Road UHC Advanced + TeXtreme Carbon thru axle 12x142mm disc brake mount flat mount Fork Felt Aero Road UHC Advanced + TeXtreme Carbon thru axle Syntace 12x100mm disc brake mount flat mount Stem AR integrated carbon with integrated cable routing Handlebar Devox Carbon Aero, 80mm reach, 125mm drop Bar tape Felt Velvet Gel Shimano 105 2x11 Disc drivetrain Saddle Prologo Dimension T4.0 Seatpost Felt VariMount Aero Road UHC Advanced + TeXtrem Tires Continental Grand Sport Race 700x25c
