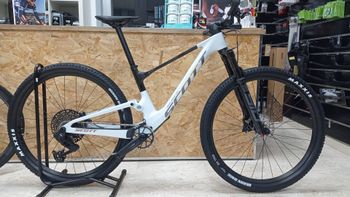

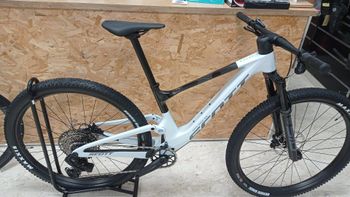

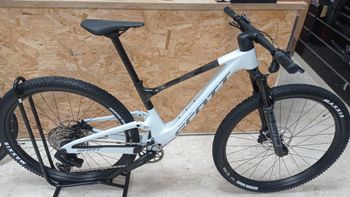

The Spark RC Team is the perfect mix of top engineering solutions, unprecedented levels of integration, and just the right amount of secrecy. We wanted to make this model the fastest ever, both uphill and downhill. By increasing the travel, refining the geometry, and applying feedback from the world's best athletes, we created the best cross country race bike. If you believe speed is fun, then you'll love this bike.

Frame@

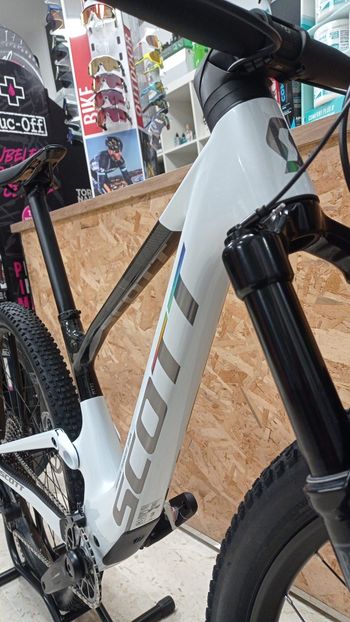

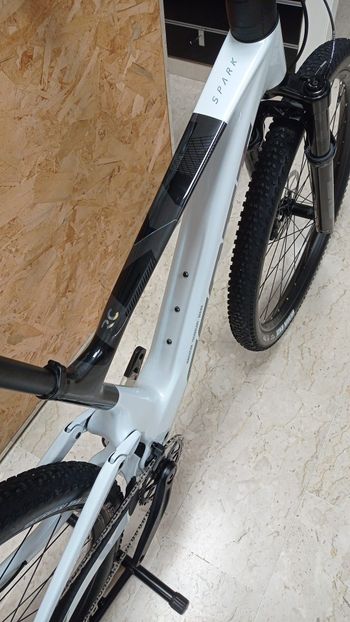

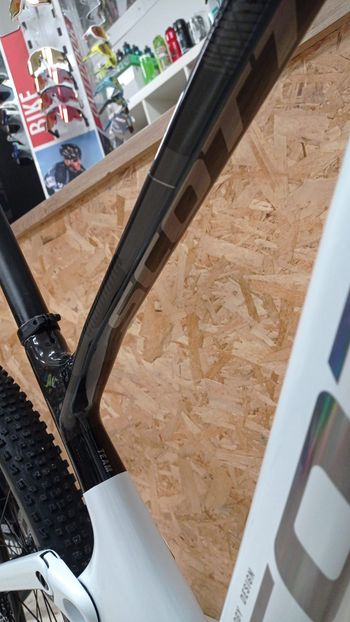

Spark RC Carbon HMF@
Integrated Suspension Technology@
Flex Pivot / Adjustable head angle
Syncros Cable Integration System@
BB92 / UDH Interface / 12x148mm with 55mm Chainline@

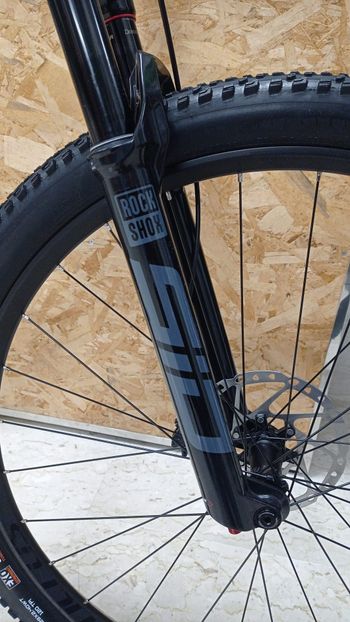

@Fork fork@@@RockShox SID 3P Air@
Rush RL 3-Mode Damper@
15x110mm Maxle Stealth / 44mm offset / Tapered steerer@
Lockout / Reb. Adj. / 120mm travel@
@RockShox NUDE 5 RL3 Trunnion@
SCOTT custom w. travel / geo adj.
@3 modes: Lockout-Traction Control-Descend@
Debon Air / Reb. Adj. / Travel 120-80-Lockout / T165X45mm@

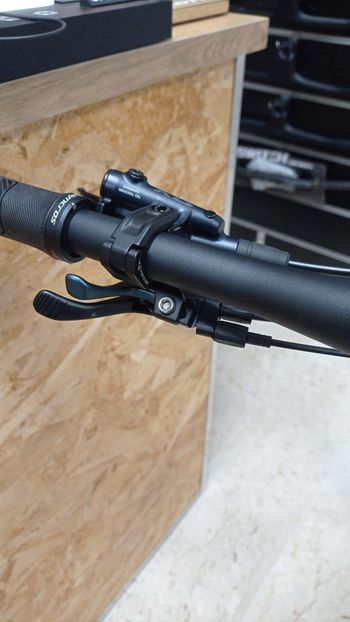

Remote Control
SCOTT TwinLoc Technology@
3 Suspension modes@

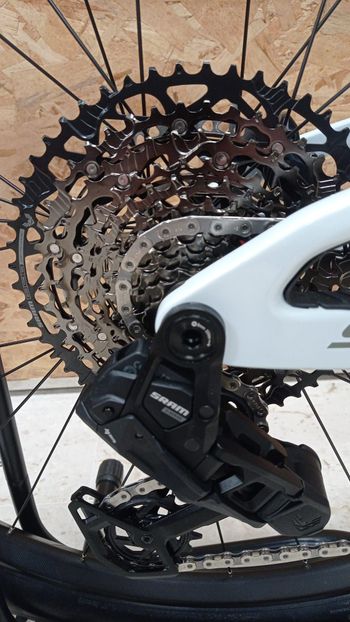

Rear derailleur
SRAM S1000 Eagle AXS Transmission 12 Speed
@Wireless Electronic Shift System
Shift Levers

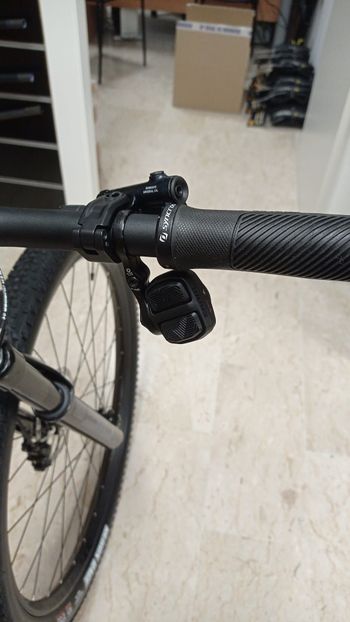

SRAM AXS Pod Controller@

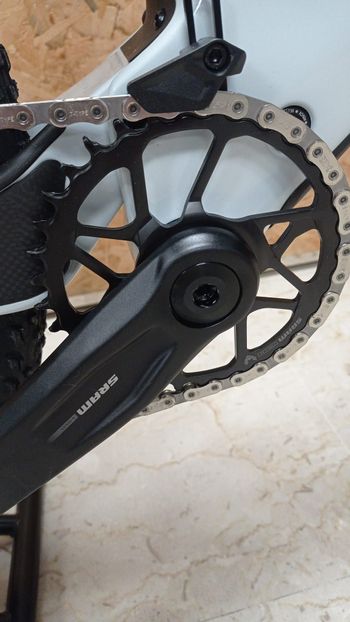

Guarnitura
SRAM S1000 Eagle Transmission@
DUB / 55mm CL / 34T@
Chainguide
SCOTT custom
Central shifting@
SRAM DUB PF 92 MTB Wide / shell 41x92mm@
Chain@
SRAM CN GX Eagle Transmission@
Cassette@
@SRAM Eagle XS 1270 Transmission 10-52@
Brakes

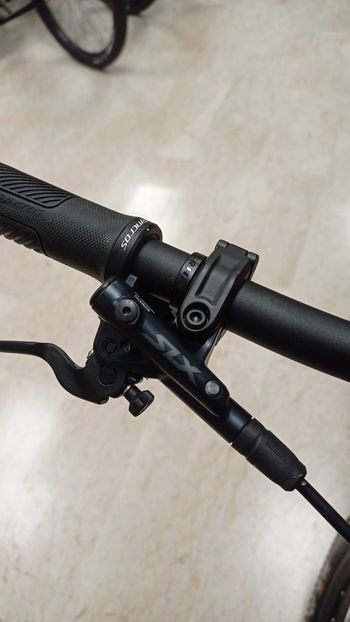

Shimano SLX M7100 Disc@
Brake disc@
Shimano SM-RT64 / CL / 180/F and 160/R@
@Handlebars@
Syncros Fraser 2.0 XC Alloy 6061 D.B.@
Flat Bar / 8° / 740mm@
Syncros Performance XC lock-on grips@
Handlebar stem@
Syncros XC 2.0
@Syncros Cable Integration System@
-12° rise / 6061 Alloy / 31.8mm / 1 1/8″
@Syncros Duncan 2.0 / 10mm offset@
@31.6x400mm
Saddle@
Syncros Belcarra Regular 2.0
CRMO rails@
Syncros - Acros Angle adjust & Cable Routing HS System@
+-0.6° head angle adjustment
ZS56/28.6 - ZS56/40 MTB@
Wheels@
Syncros Silverton 2.5-30 CL@
F: 15x110mm@
R: 12x148mm@
30mm Tubeless ready rim / 28H / Micro Spline@
Syncros Axle w/Removable Lever@
with 6mm Allen
T30 and T25 Tools@

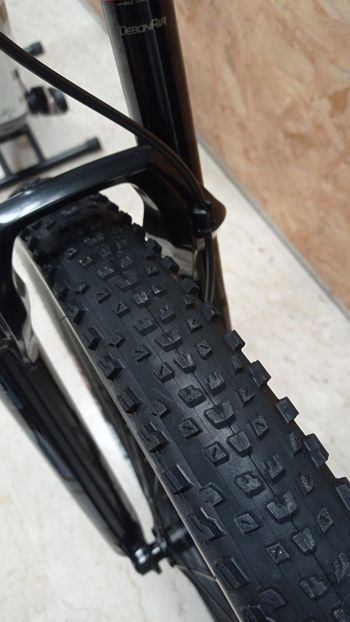

@Front tire

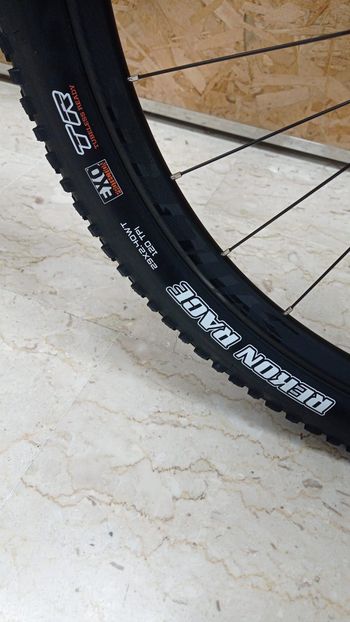

Maxxis Rekon Race / 29×2.4″ / 60TPI Foldable Bead@
Tubeless Ready / EXO
@Rear Tire@
Maxxis Rekon Race / 29×2.4″ / 60TPI Foldable Bead@
Tubeless Ready / EXO
Extra@
SRAM AXS Powerpack@
Weight in kg (approx.)@
12.2 (Tubeless setup)
Weight in lbs (approx.)
26.9 (Tubeless setup)
Total weight
128kg@
Total weight includes bike, rider, equipment, and potentially additional luggage
