SLIPPERY DESCENTS, MUD, GRAVEL OR DIRT... YOU NEVER KNOW WHAT YOU MIGHT ENCOUNTER DURING A GRAVEL ADVENTURE. THAT'S WHY THE NEW REVOLT X ADVANCED PRO HAS BEEN DESIGNED TO ACCOMMODATE A SUSPENSION FORK SO YOU DON'T HAVE TO BACK OUT OF ANY OBSTACLES UNTIL THE END OF YOUR RIDE.
KEY PERFORMANCE FACTORS
@CONTROL@
@The carbon frame has been specially designed to accommodate the front suspension. With 40mm of travel, the fork absorbs shocks, preventing fatigue and allowing you to ride faster.@

@Optimized comfort@
This frame features thinner seat stays that help absorb vibrations and bumps. D-Fuse technology on the Contact SL XR handlebar helps filter vibrations without compromising the stiffness needed for dynamic steering in turns, sprints and climbs.@

@Adaptable to the terrain
A flip chip in the rear dropout adjusts the wheelbase: short for faster handling, or long for improved stability at high speed. The long setting also allows for larger-diameter tires, up to 53 mm. You can use the included telescopic/suspension seatpost for a more capable bike, or switch to a unique D-Fuse seatpost or a traditional 30.9mm round seatpost.@


@S 159 172cm@

@ColorsBlack/Sea Sparkle@
@FrameAdvanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout@

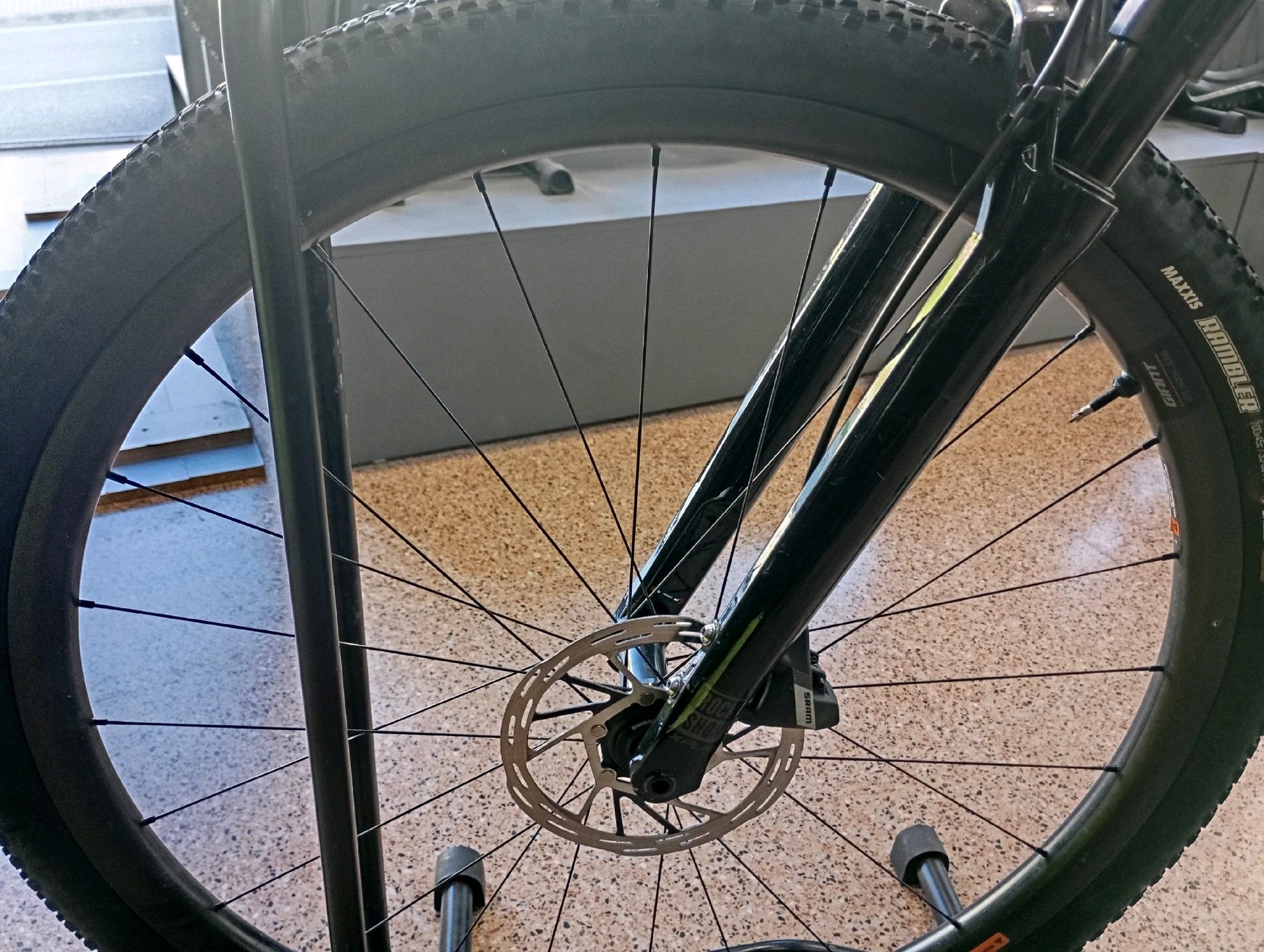

@ForkRockShox Rudy XPLR, 40mm, cartridge damper12x100mm thru-axle@
@Shock absorberN/A@
@HandlebarGiant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm@
@Stratus Lite 3.0 grips@
@PowerGiant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm@
@SeatpostPost Moderne Suspension dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop@
@SaddleGiant Approach SL@
@PedalsN/A@
@ShiftersSram Apex AXS 1X12@
@DerailleurN/A@

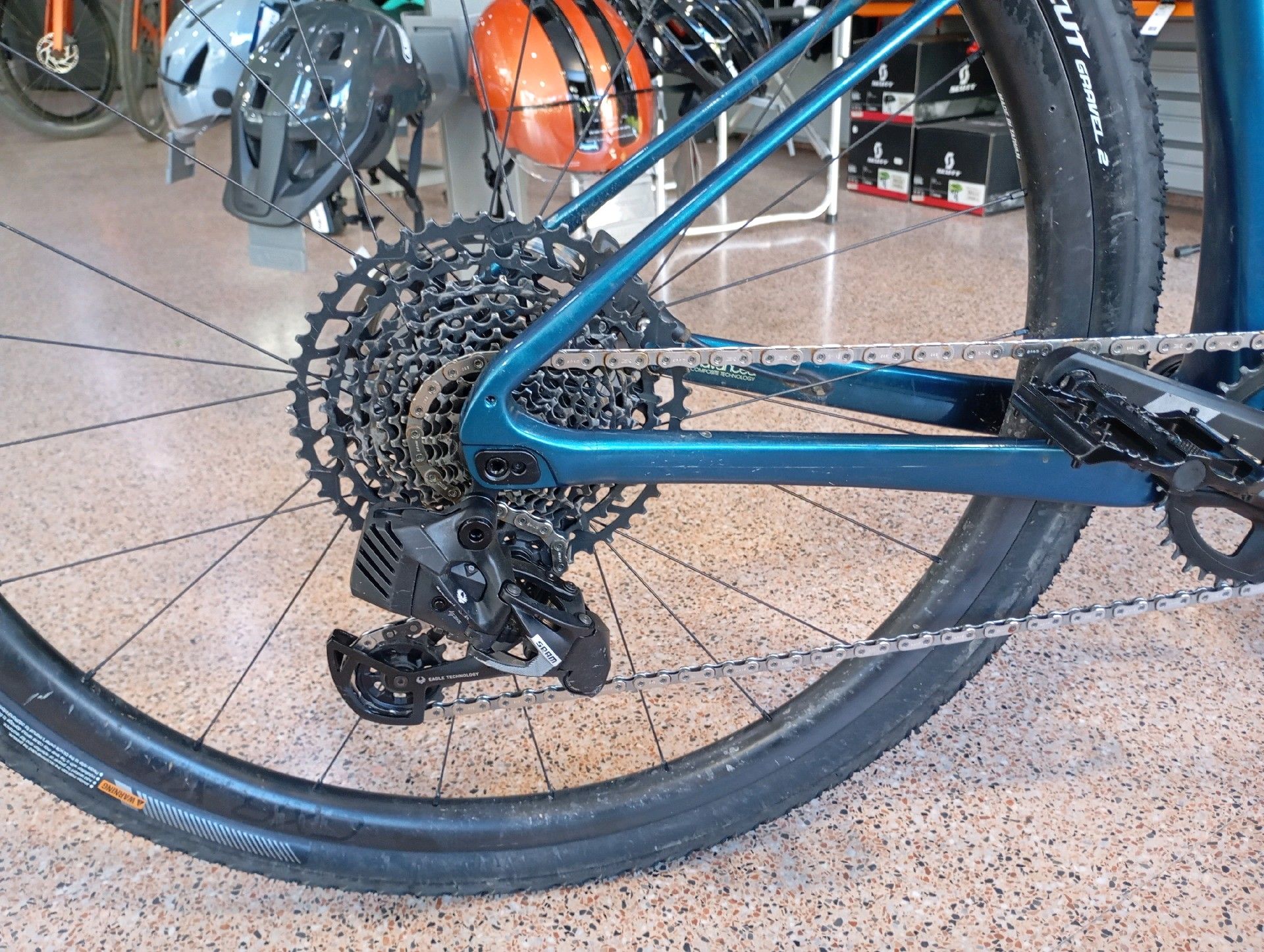

@Rear derailleurSram X1 AXS Eagle w/ battery protector 1X12@
@BrakesSRAM hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm@
@Brake leversSRAM Apex AXS hydraulic, left lever dropper switch@
@CassetteSRAM PG-1230, 12-speed, 11x50@
@ChainringSRAM CN-EAGL-NX-A1, 12-speed@

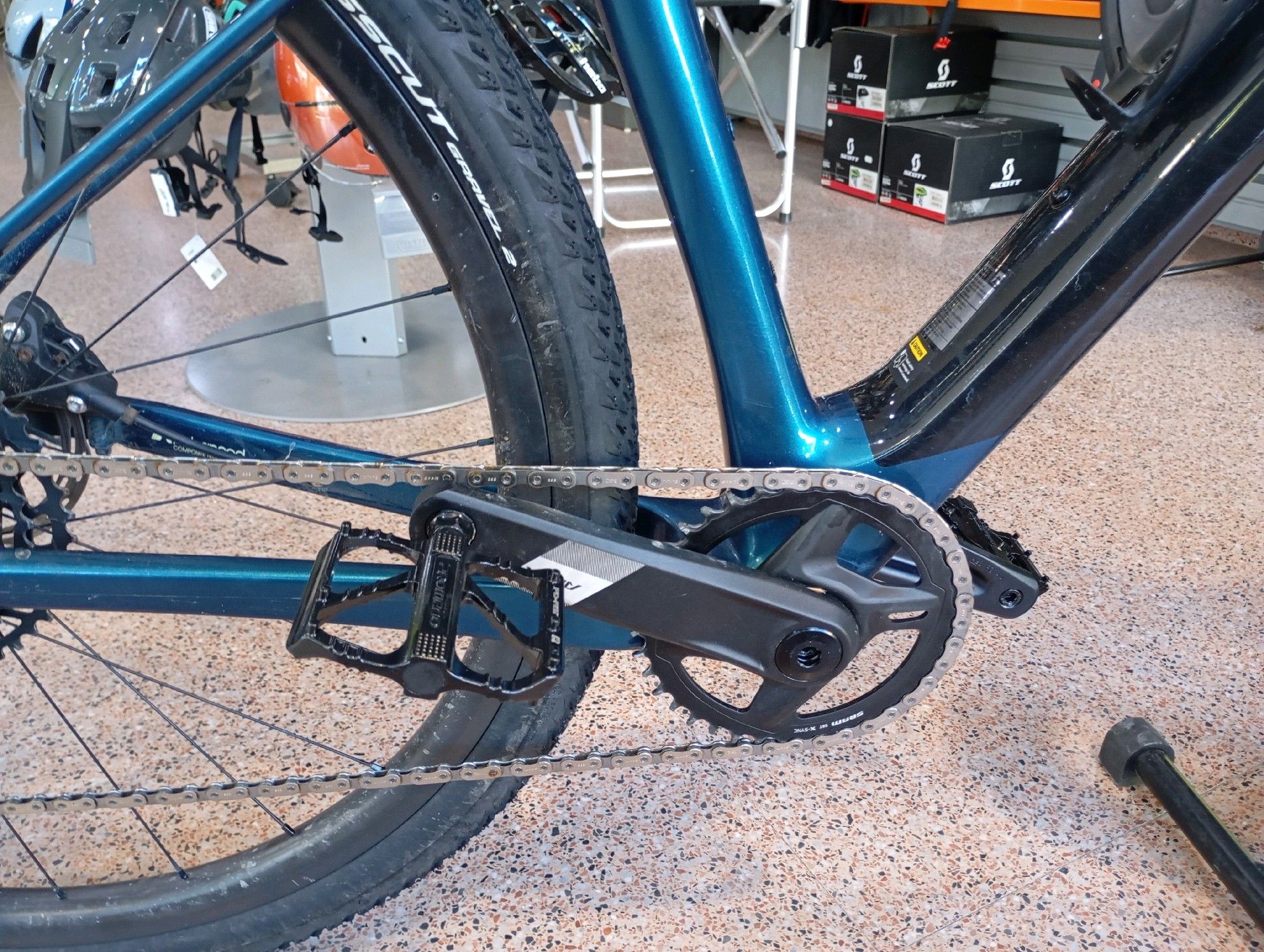

@Set. cranksetSRAM Apex 1 Wide DUB, 1X40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm@
@Bottom bracketSRAM DUB, press fit@
@WheelsGiant CXR X1 WheelSystem, [F] 25.8mm, [R] 25.8mm@
Hubs [F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle@
@RadiosSapim Laser@
@HubsMaxxis Rambler, 700x45c, tubeless prepared@
@Extrastubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position@
@Max tire width700x53mm at long RC@

@Changed handlebars for 22° flared handlebars Original will be sent.
